Standard Hydraulic Quick Coupling

Versatile KSA series couplings are used in a wide range of hydraulic applications including agricultural applications, Mobile and construction equipment, in-plant machinery including hydraulic power units and hand tools.

Send Inquiry

Product Introduction

APPLICATION

They can be found anyplace where the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.

Characteristics

According to the standard lSO7241-1A
Poppet valves allow larger flow
Locking ball system allows quick connection&disconnection
Bidirectional flow
Caps&plugs with both plastics and aluminium

SPECIFICATION

KSA Series Technical Date

Nominal Size		Max Working Pressure	Rated flow	Max flow rate	MIn Burst Pressure			Fluid spillage	Replace for
Nominal Size		Max Working Pressure	Rated flow	Max flow rate	Male	Female	Coupled		Parker 60 DNP PBV Faster HNV Holmbury IB Dixon H Stucchi IRB Eaton HK Aeroquip FD45 Snap Tite 72 Voswinkel IB Safeway S10 Tomco THK Hansen HKHansen HA15000
QLEAD	ISO	bar	L/mm	L/mm	bar	bar	bar	cc
04	6.3	250	12	24	1100	1800	1000	1
06	10	250	23	46	1400	1400	1300	2.4
08	12.5	250	45	90	1100	1400	1100	3.9
12	20	250	106	220	1000	1300	1200	11
16	25	250	189	260	1000	1100	1000	19
24	40	200	379	757	800	800	800	95
32	50	100	757	1000	400	400	400	170

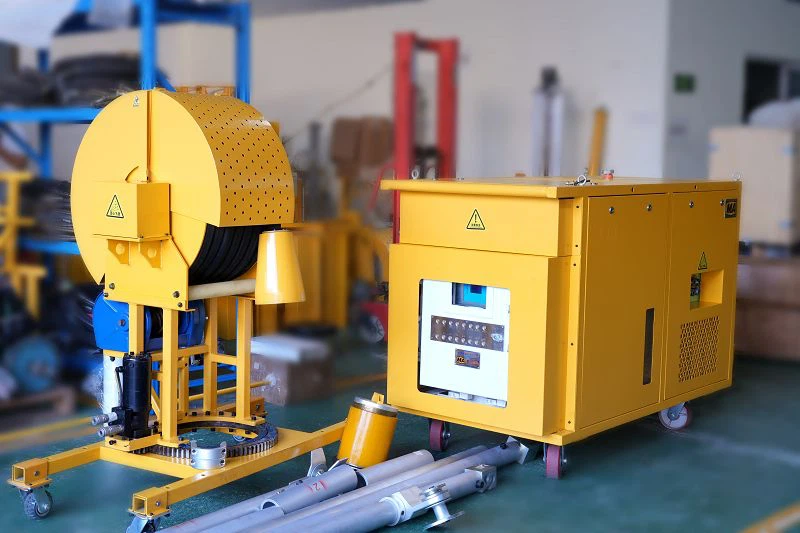

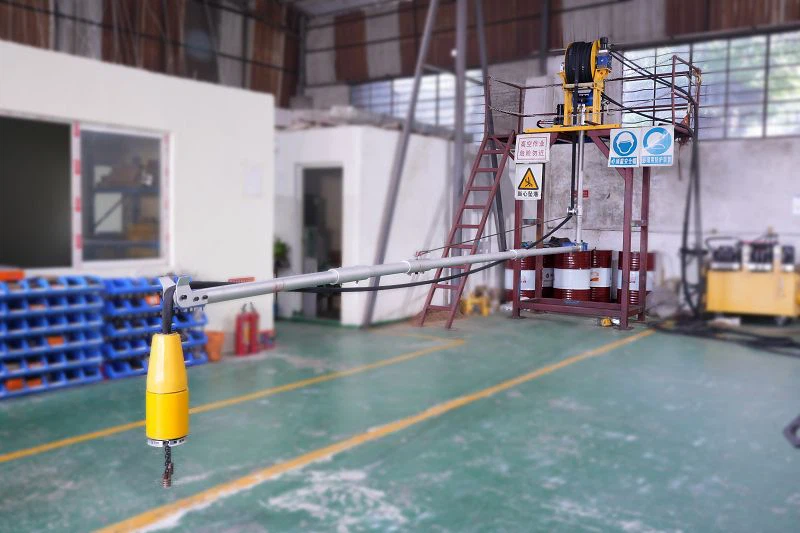

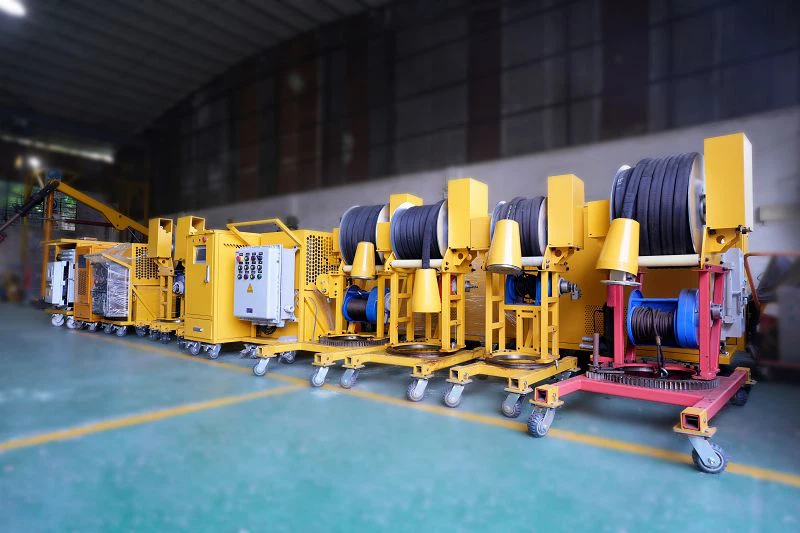

Factory Instance

FAQ

1.Q: Does your factory have international certifications? What are they?

A: Yes. Our factory has obtained ISO 9001 (quality management system), ISO 14001 (environmental management system), and CE certification (for European market). For explosion-proof products (such as anti-corrosion silo cleaning machines), we also have ATEX and IECEx certifications to meet global market requirements.

2.Q: How many employees does your factory have? What is the proportion of technical personnel?

A: Our factory has 120 employees in total. Among them, technical personnel (including R&D engineers, process engineers, and quality inspectors) account for 30%, with an average of 8 years of industry experience, ensuring professional support for product development and production.

3.Q: What advanced production equipment do you have in your workshop?

A: We have equipped our workshops with advanced equipment, such as CNC machining centers (for precision parts processing), laser cutting machines (for metal plate cutting), robotic welding arms (for high-precision welding), and automatic painting lines (for uniform surface treatment), improving production efficiency and product precision.
